HOW TO BUILD A CAMPER VAN:

HEATING, COOLING & HOT WATER




In this section we’ll cover :

  • Heater options

  • Hot water options

  • Cooling options

  • Safety

  • Ventilation

  • Installation

Let’s get started.





 Contents



Heater options

Safety

Cooling options

Ventilation

Hot water options

Installation




Many of the products that appear below are either Amazon or eBay affiliate links. We earn a small commission on sales at no extra cost to you.



In this guide we’ll talk you through all of your camper van heating, hot water and air conditioning options, ranging from the most basic solutions to top-of-the-range equipment.




Whatever your budget and van conversion plan, this guide contains everything you need to know about heating, cooling, safety and installation.

We’re going to talk you through the different options you have for heating and cooling your van, including the pros and cons of each and how to install, however you may be surprised to learn that you don’t actually need to install a heater or air con in a van.

The most important thing for controlling the climate inside your camper van is in fact insulation. A well-insulated van will keep the heat in and the cold out, or vice versa in hotter climates, and you’d be surprised how much difference a 50mm layer of insulation can make just by trapping body heat and preventing cold transfer. You’ll always want to make sure you have a vapour barrier installed, which will make a huge impact on damp and condensation. You’ll find all of this information and more in our Insulation guide.



H E A T I N G, C O O L I N G A N D H O T W A T E R

Heating options



Although when we began travelling in our van we had an Eberspacher diesel heater, over time we’ve ended up phasing it out and not using it at all, even in temperatures as low as -14ºC.




A cold start to our day in Northern Italy, 2018. We’d given up using our heating by now and opted instead for plenty of warm blankets and cups of tea.

While most sane people will enjoy a comfortable living temperature in a van, the point here is that pulling on an extra jumper or wrapping up with blankets in bed (preferably with another person) can be very effective way of keeping warm, and you will find that after a couple of weeks your body is capable of adjusting to the climate, whether that be +40ºC or -20ºC.

Wim Hof will gladly extol to you the benefits of wearing less and allowing your body to generate its own heat, but we can’t all be ice men, and sitting in a cold, damp van is a sure fire way to get ill pretty quickly.

So with that, we’re going to run you through the many options for camper van heating solutions to suit every budget.

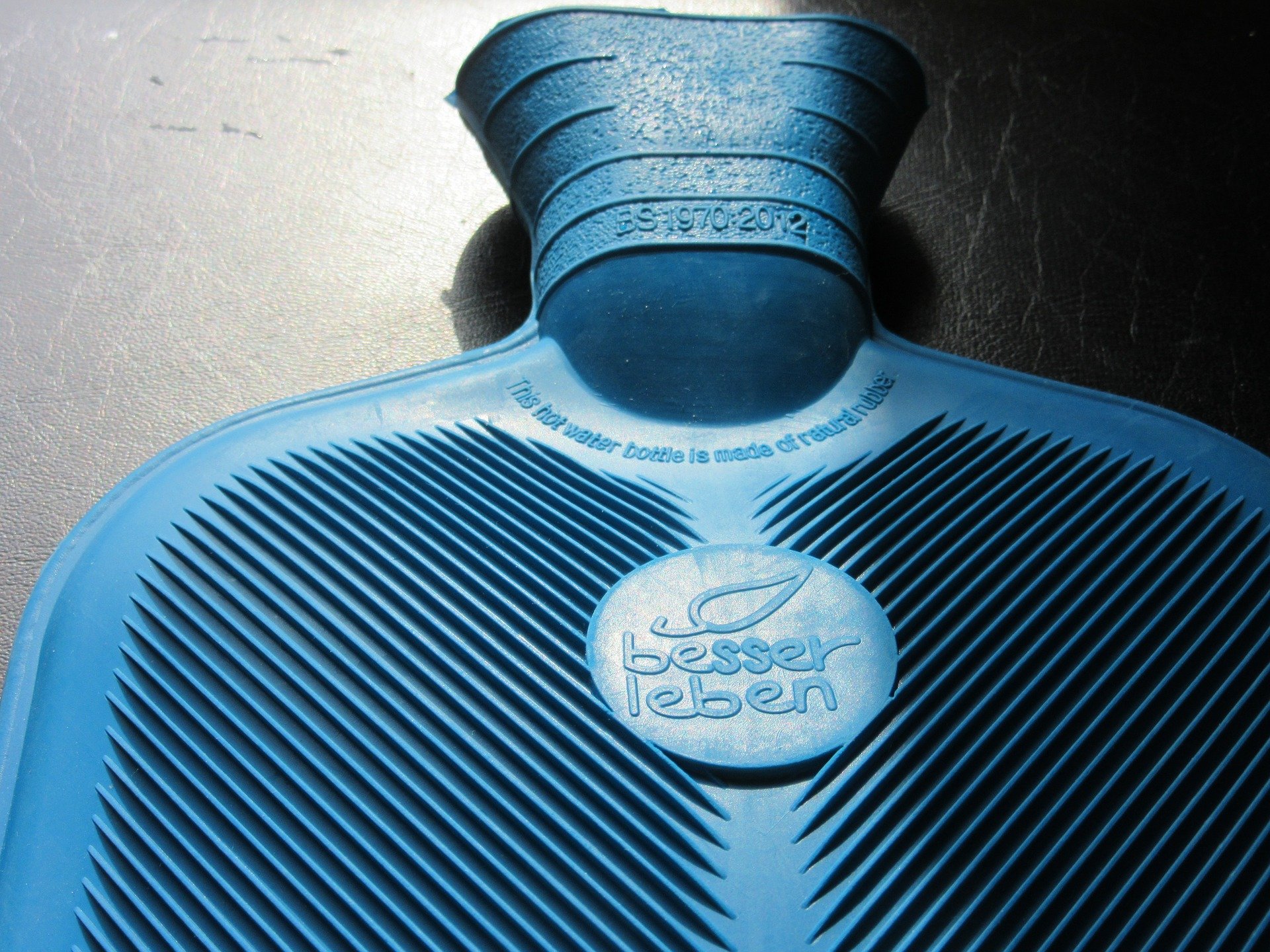

Hot water bottle

COST: £

PROS:
+ Cheap
+ Simple
+ Lasts all night

 CONS:
– Can leak
– No ambient heat

Okay so we’re really going back to basics here but sometimes the oldest methods are the best. Hot water bottles have been around since the 16th century, and have come a long way since those hard pottery devices you often see in Victorian museums. Not to be overlooked, a hot water bottle really can make the difference between a chilly night and a comfortable one. You can share one bottle between two people, or for maximum warmth cuddle up with one each, or use it to keep frostbitten toes at bay. If you have a stove and a kettle, you’ve got heating.



Hot water bottle
Buy here

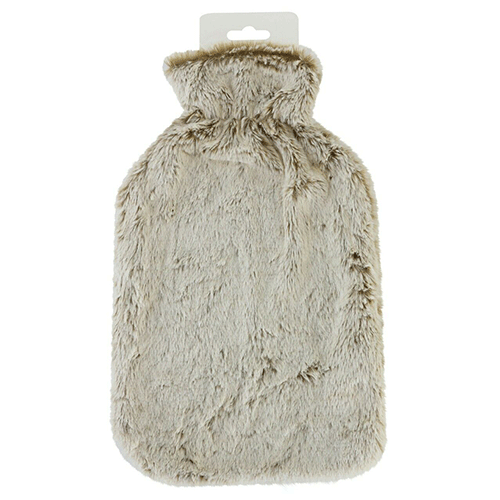

Hot water bottle
Buy here



Sleeping bags and blankets

COST: £

PROS:
+ Cheap starting prices
+ Simple
+ Easy to store

 CONS:
– No ambient heat

A good quality 4 season sleeping bag (be that double or single), a heavy wool blanket or a cosy fleece can do wonders on top or underneath a duvet to double up on trapping body heat, or even just for cosying up by the fire outdoors. When the weather warms up, we like to lay ours flat on our mattress and make the bed on top to save on storage space.

4 Season sleeping bag
Buy here

Double sleeping bag
Buy here

Wool blankets
Buy here

Fleece blankets
Buy here


Electric blanket

COST: £

PROS:
+ Versatile
+ Quick to heat up
+ Inexpensive

CONS:
– Consumes power
– Minor safety risk
– No ambient heat

What a wonderful world we live in, that you can now get 12V electric blankets which plug into the cigarette lighter in your van. Great for driving long distances, using as an under-blanket in bed or wrapping around your shoulders, they also consume very little energy (average between 21W and 75W), although be aware that leaving them on unattended could be a potential fire hazard, however small the risk.



12V Electric blanket
Buy here

12V Electric blanket
Buy here



Electric heaters

COST: £

PROS:
+ Cheap
+ No smell
+ No carbon monoxide risk

CONS:
– High power consumption
– Heat dissipates quickly
– Aren’t available in 12V

Electric heaters aren’t the most practical type of heating for a van because they require a constant power draw, and the heat generated from them tends to dissipate fairly quickly. However if you have a decent off-grid battery and solar set up, or if you plan on spending a lot of time on campsites which provide power and just need something to take the edge off the cold, then an electric heater could be a good option for you.

There are many different types of electric heaters such as ceramic and oil-filled, offering different warm up speeds and heat outputs. Unfortunately, there does not yet seem to be any option for a 12V electric heater for a camper van, although you can make do with low wattage heaters, so just make sure you have an inverter with a peak output capable of running your chosen heater.

If you’re looking for a low wattage heater for your camper van, we recommend the Outdoor Revolution heater, which is remarkably compact and low-energy, consuming between 600W and 1200W and easily capable of warming a small space with its built-in fan.

The Pro Breeze ceramic mini heater uses even less, just 500W, but is mainly designed as a desktop heater, so while it makes a great personal heater it would make little difference to the ambient temperature of your van.

Although probably more associated with your nan’s house than a van, we have nothing but good things to say about a simple oil-filled radiator, which is capable of heating a van to a very comfortable temperature in less than an hour- in fact, you’ll probably end up turning the heat down! This one on eBay consumes just 700W, but as long as you avoid using the fan function they’re all pretty good on power consumption.

Outdoor Revolution Electric Heater
Buy here

Pro Breeze Mini Heater
Buy here

Oil radiator
Buy here

12V Hand warmer
Buy here


LPG heaters

COST: £ - £££

PROS:
+ Quiet
+ No electrical draw
+ Can maintain a constant temperature
+ Operates in cold temperatures

CONS:
– Creates condensation
– Fire hazard
– Requires ventilation
– Carbon monoxide risk

If power consumption is your main concern then a gas or LPG camper van heater may be the way to go. They are generally portable heaters, silent, use very little gas to operate and heat up a space very quickly. Unfortunately they also carry risks, such as carbon monoxide poisoning and fire, although they do typically come with built-in safety features to minimise these risks.

The main issue is that they create a lot of condensation in a small space, which is generally the opposite goal of having a heater in a van, but proper ventilation should reduce the amount of condensation and the risks of carbon monoxide gas build up (i.e. you’ll need to have your door open while the heating’s on).

LPG appliances should always be installed by a gas safe engineer. Read our guide on Safety below.

LPG should also be stored externally to the van, such as in a gas safe cabinet. An underslung LPG tank is a large initial investment but will make refuelling cheap and easy with no risk, and can be used for heating, hot water and cooking.

A portable camping heater runs on small gas canisters and is a simple and portable way to generate heat, although they can be quite heavy on consumption, and should really only be used outdoors or with plenty of ventilation. These usually generate around 1.3kW of heat.

The Propex Heatsource is probably the standard for built-in gas heaters, offering a safe and efficient way to heat your camper van. These can be programmed to maintain a set temperature using an electronic thermostat, and a 4.5kg bottle of butane can run the heater for up to 32 hours, generating 1.9kW of heat.

The Truma Combi is literally the crème de la crème of camper van heaters, combining a space heater and water boiler with a 10L integrated water tank and app-compatibility. They come with a hefty price tag, but you pay for quality, and the Truma can generate up to 4kW of heat for a supremely toasty living space.

Outdoor heater
Buy here

Propex Heatsource
Buy here

Truma Combi
Buy here

Underslung LPG tank
Buy here


Diesel / Petrol heaters

COST: ££ - £££

PROS:
+ Low energy and fuel consumption
+ Exhaust fumes are blown outside
+ Reliable
+ Able to operate in lower temperatures

CONS:
– Difficult to install (requires cutting hole in van for exhaust)
– Cheaper ones are prone to breaking
– Can be noisy
– Expensive

In our opinion, a diesel heater (also known as a parking heater or night heater) is the best camper van heater, not least because you can heat your camper van without electricity and extremely cheaply.

Diesel (or less commonly petrol) heaters operate by drawing fuel and combusting it inside a heat exchanger, which is then blown into the room by a fan. They generally take a few minutes to reach peak heat, and most consume no more than 0.3L of fuel per hour as well as a very low 12V current, making them extremely efficient to run. Some are quieter than others, many operate as a night heater maintaining a constant temperature throughout the night, although these programmable heaters are significantly more expensive than manually operated ones.

While the wiring is usually fairly straightforward, running a fuel line into your van’s tank can be a tricky process, and installation will require cutting a hole in your van’s floor or wall through which the exhaust will be installed. Fortunately, a diesel or gasoline heater can be a fairly flexible option as many people opt to install them underneath their van’s seats or under the bed, so a secondary tank can also be installed alongside it, which eliminates the risk of accidentally running your main fuel tank low.

Cheap Chinese diesel heaters have been much talked about online in recent years, offering an entry-level way of heating your van for under £100, but is it too good to be true? The general consensus is that these are surprisingly reliable, and when they’re not they are relatively easy to fix, depending on your level of skill and determination. HappyBuy is perhaps the most recognisable of these knock-off heaters, and you can see for yourself the number of mixed reviews they have on Amazon, so really it’s up to you if you want to take a punt to save a few hundred quid.

Eberspacher are long-time manufactures of diesel heaters and a great mid-range option for camper van heating. Their Airtronic models heat the room, while the Hydronic models heat water (more on this below). They do not offer this in a combined unit, so you would need to purchase the two separate models if you wanted both hot water and air, or adapt a Hydronic model as we did in our LDV using a coil and a heater matrix. You can also install an EasyStart timer for full control over your heating settings, and Eberspacher offer a different model of heater for use at altitudes above 1500m. An Airtronic D2 can generate up to 2.2kW of heat, consuming up to 0.28L of fuel per hour.

The Webasto Air Top is a top-of-the-range diesel heater offering superior efficiency and whisper-quiet operation with a 7 day programmable timer, and we should hope so too for that price tag. It can generate up to 2kW consuming no more than 0.24L per hour.

If you’re looking for a petrol heater for your camper van, try the Webasto Air Top petrol, or the Eberspacher B3L. A petrol heater requires extra care in maintenance and installation due to flammability

Chinese diesel heater
Buy here

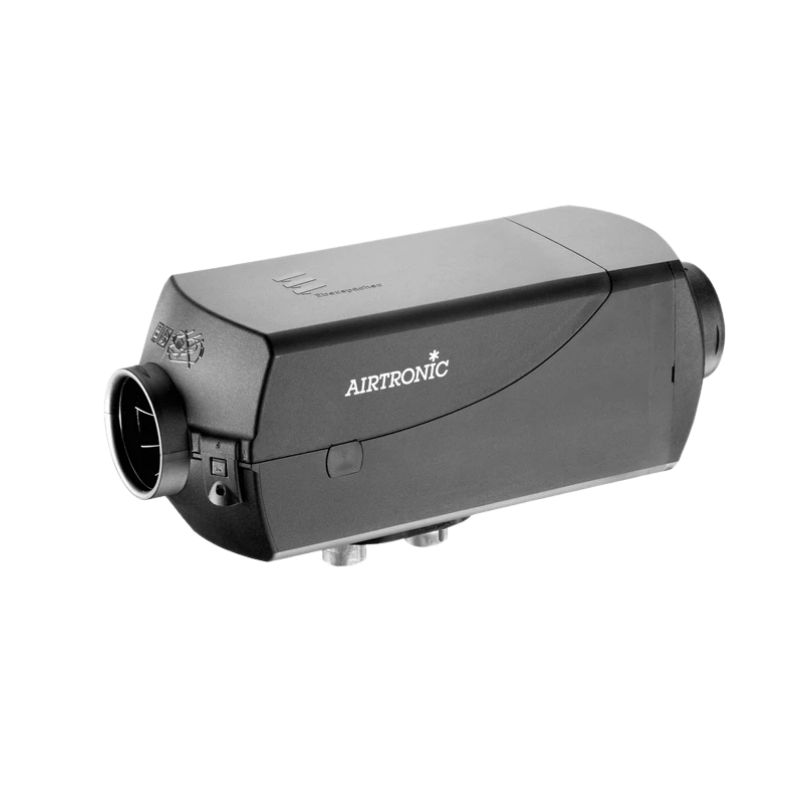

Eberspacher Airtronic
Buy here

Webasto Air Top
Buy here

Eberspacher EasyStart
Buy here


Underfloor heating

COST: ££ - £££

PROS:
+ Added comfort
+ Warm feet
+ Good for pets

CONS:
– Expensive
– No ambient heat
– Must be installed at start of build

Underfloor heating in a van? Surely that’s a typo? No, it’s true! No more cold feet when you get up to wee in the night, and your pet dog will surely love you forever if he doesn’t already.

As extravagant as it may seem, 12V underfloor heating in a camper van is not only possible, it’s not as expensive as you’d think either.

Pioneering the way are US-based company Van Life Tech, who offer entire kits to create an app-controlled radiant floor heating set up in your van. Prices and whether they ship to the UK & Europe remain a mystery, but what we do have here are British based company Termofol, who offer 12V heating film mat for use in greenhouses and- yes, camper vans! This film uses carbon crystal technology to generate infrared heat that is warm to the touch, and they have more information as well as installation guides over on their website. The heating film runs on 12V, consuming between 140W and 220W per m² installed, and can be controlled by a thermostat. They also offer underfloor heating kits with thermostat, wires and vapour membrane included.

The only question that remains to be seen is, why? Underfloor heating, while no doubt a luxury, is not an ambient heat source, and so if it’s -20ºC outside your feet will be warm, but the rest of you will still be frozen, so you’d still need a space heater in addition to the underfloor heating. We’ll leave that call up to you.


Woodburning stove

COST: ££

PROS:

+ Free fuel

+ Dry heat

+ Adds ambiance

CONS:

– High maintenance

– Takes up space

– Fire hazard

– Requires cutting a hole in the roof

– Difficult to insure vehicle with woodburner

Wood burning stoves are kind of the classic hippy van accessory, and the smoke billowing out of the flues of traveller vans and buses was an iconic scene at many festivals or Solstice gatherings a few decades ago. Still today they’re just as popular as they ever were, competing for top spot with diesel and gasoline heaters, and it’s easy to see why. The romantic notion of curling up by the fire at night, and the appeal of free fuel for heating and cooking forever are hugely attractive. Unfortunately however there are many practicalities to consider too.

Although the fuel may be free the initial costs of setting up a wood stove and the many components to go with it are high. They must be maintained regularly to ensure the fire rope is not leaking smoke, and that the flue is clear of soot which is liable to catch fire. They take up a lot of space in your van, especially with the added storage of often damp wood, and as such should seriously be considered before the conversion as they can be difficult to add in as an afterthought. Cutting a hole in your roof is also a big commitment, but the hot, dry heat of a burner is a wonder for drying out clothes and keeping condensation at bay.

If a wood burner is your only heating source however it can be a huge drawback for stealth camping, as the smoke rising out of your flue is like a big neon sign saying camper! Everything you own will smell faintly of woodsmoke, which can be a pro or a con depending on your preference. However one of the most important things to consider is whether the installation of a wood burner is going to wash with your insurance company, and in some cases it can even invalidate your insurance so make sure to check first.

We recommend purchasing a heat-powered stove fan to help spread the heat evenly around your van too. Really you don’t want a wood burner that’s any more than 2kW, unless you live in a bus, as the heat would be too intense for such a small space. This does limit your options somewhat, but here are our recommendations for mini wood burning stoves.

Glastonbury Burners are the go-to for camper van-sized stoves, with their Mini Cyclops and Gnome burners being among the most popular. Lead time is generally a few weeks and they deliver anywhere in the UK for £35.

Anevay Stoves make some of the most stylish wood burners out there, locally crafted in Cornwall in either satin black or the delicious honey glow brown. Their Shepherd Stove is the perfect size and output for a van at 1.7kW, and they offer stoves for outdoor cooking too.

You can also find handmade budget options like this micro wood burner, which comes in at just a fraction of the cost of other wood burners, although sadly lacking the option to see the flame inside. The only downside with mini wood burners and rocket stoves are that they are unable to take logs, which means you will be topping them up with fuel more frequently.

Be aware that not all wood burners are suitable to be used indoors, so always check before ordering.



H E A T I N G, C O O L I N G A N D H O T W A T E R

Hot water options



As we said previously about camper van heaters, having running hot water isn’t necessarily essential in a van; it’s more a matter of personal preference.







Here we’ve compiled a variety of options for camper van water heaters and hot water options to consider.

There are two main types of water heaters for a van: using a tank, or tankless. Here are the key differences between the two:

Tank:

Some heaters will require a full system set up including plumbing, pumps and a tank. The tank acts as a holder for the water while it is heated up and then dispensed, usually fed from an adjoining cold tank. The most common types of heaters that require a tank are diesel, gasoline and electric. Calorifiers and Combi boilers have their own integrated tanks.

Tankless:

Tankless water heaters are also known as instant water heaters as they provide hot water on-demand. While they still require some sort of tank to hold cold water prior to heating this needn’t be installed in your van; it could be something as simple as a bucket. There is no need for dedicated storage for the hot water as a pump will draw cold water into the heater where it passes over a heated coil before being dispensed. The most common type of tankless water heater is LPG or propane.


Kettle



COST: £

PROS:
+ Cheap
+ Doesn’t use much gas
+ Can be used outdoors on a fire or inside on a stove

CONS:
− None, it’s a kettle

There’s not much washing of plates, dishes and bodies that can’t be done with the aid of a kettle, which is all we now use for all of our daily chores. To do the dishes we pour ⅔ of a boiled kettle into the bowl, scrub and use the remaining ⅓ for rinsing. It’s a similar process to hand wash our clothes, which usually uses around 2-3 kettles, and we wash with a flannel and shave using a plastic tub. We use a larger aga kettle for washing, which we fill up in a clean river or lake for washing clothes if possible, and a milk pan for boiling drinking water. It’s not elegant, but it’s simple and effective, and kettles don’t break down.


Tankless LPG water heater



COST: ££

PROS:
+ Cheap
+ Easy to set up
+ Portable

CONS:

– Not for use indoors
– Not suitable for hire vehicles
– Carbon monoxide risk

A favourite option among van-dwellers is the instant LPG water heater, but we have some bad news for you.

While you may have seen countless videos and photos of people showering out of their back doors using one of these, they cannot be used as a permanent camper van hot water solution, owing to the fact they vent directly out of the top and not out of a flue. Read: carbon monoxide. There’s nothing to stop you installing one of these in your van and using it in the kitchen or shower room at your own risk, but for a hire van it’s a big no no, and won’t meet the regulations to pass a Gas Safety Certificate.

So that’s the bad news out of the way, but the good news is that these are a relatively inexpensive way of getting instant hot water that requires little to no installation. Brands like EcoTemp and Joolca offer slightly upgraded versions of the same thing, but they all run directly off a bottle of propane and a D battery for the ignition, delivering 6L /min of lovely hot watery goodness. Cue backdoor shower photos.



Eccotemp Tankless water heater
Buy here

Camplux Tankless Water Heater
Buy here



Diesel water heaters

COST: ££ - £££

PROS:
+ Cheap to run
+ Can heat large volumes of water
+ Can run off vehicle’s fuel supply

CONS:
–  Takes time to heat up
–  Complicated installation for novices
–  Expensive

Diesel heaters, or less commonly petrol heaters, are an efficient and economical way to heat water in your camper van. They can heat air, water or both simultaneously, drawing on fuel from your van’s tank or its own unique fuel source.

They work fundamentally the same as a gas water heater, however the water is heated in an external tank over a period of time, usually between 10 and 20 minutes, before it achieves optimum temperature. Diesel water heaters were originally designed as engine pre-warmers for cold climates, but have since been adapted to heat living spaces in caravans, boats and of course camper vans.

The inner workings of an Eberspacher Hydronic diesel water heater, ideal for a campervan conversion.

There is a bit of installation required with wiring and plumbing but nothing too advanced. An external exhaust will need to be installed to vent fumes outdoors, and the heater needs to be coupled with a plate heat exchanger and an insulated tank or calorifier (see below) to function (i.e. a vessel in which it can heat water via a coil filled with coolant). If this all sounds too complex, you can buy complete kits including everything you will need to get set up.

Installing an Eberspacher Hydronic is probably the cheapest option for a diesel water heater, although as mentioned before it does not double as a space heater, unless you are able to adapt it. The D5WSC model is a 5kW water heater with built-in fuel pup and with an EasyStart pro controller it can be programmed to operate on a 7 day timer. You can also buy an Eberspacher Hydronic S3 kit with everything you need to get set up.

The Webasto Thermo Top C does much of the same as the Eberspacher, but it combines hot water and heating into one easy package, such as with the Webasto Thermo Top C 300 which is created specifically for camper vans and boats. This guide explains how to install the Webasto system in far more detail than we ever could. You can find an entire installation Webasto Thermo Top kit including a plate heat exchanger, fan matrix and exhaust pipe.

The Truma Combi range also integrates both heating and hot water, but with an in-built 10 litre stainless steel water tank and Bluetooth app connectivity, as well as digital controls via the Truma CP digital control panel. It can run on either diesel or 230V mains electric, and takes around 20 minutes to heat water to 60ºC.

Truma Combi
Buy here

Eberspacher Hydronic S3
Buy here

Webasto ThermoTop C300
Buy here

Eberspacher EasyStart
Buy here


Caravan water heater

COST: ££

PROS:
+ Instant hot water
+ Gas safe
+ Can be plumbed into multiple systems

CONS:
–  Takes up space
–  Flue must go out of roof

Okay, technically this is the same principle as the tankless water heater above, but hear us out. A caravan water heater like the Cointra 6L is the best camper van water heater because it has an external flue which vents out of the roof of your van, meaning, unlike the unflued water heaters, it is Gas Safe and can be used in hire vehicles when installed by a professional. Yay! Of course this isn’t a problem if you don’t ever plan to hire your camper van out, or if you don’t mind breathing in noxious fumes, but for us this felt like the perfect solution after months of searching for something that seemingly didn’t exist.

The Cointra runs on bottled gas and ignites with a D battery, and can be plumbed in to give you a hot shower and hot water in your kitchen- just don’t use a thermostatic mixer for either of those; a regular mixer is fine. It’s very efficient and despite its size looks pretty smart and unobtrusive too.

We have more information on installing the Cointra boiler and gas safety over on our Plumbing page.


Calorifier

COST: ££

PROS:
+ Free to run
+ Large storage capacity
+ Hot water immediately after driving

 CONS:
– Expensive and tricky to set up
– Bulky
– Requires engine to be running

TLDR: A calorifier is a bit like a kettle.

Okay, so technically a calorifier isn’t a standalone camper van hot water heater, but it can be made into one, and one which will cost you precisely zero extra pounds to run.

A calorifier is basically an insulated water storage cylinder with one or more heat exchanger coils inside that contain a liquid such as coolant. They are known as indirect-fired water heaters because they do not contain a burner. Instead, they can be connected to your van’s (or boat’s) coolant system, which recirculates extra coolant between the engine and the coil inside the calorifier, thus using waste heat to heat the water inside, like an extension to your engine’s cooling system. They can also be heated electrically with an immersion heater, or connected to a diesel heater; the calorifier is simply the vessel to heat water in.

Imagine spending the whole day driving, parking up somewhere nice, and being able to immediately have a hot shower to wash off the driving dirt. That’s what a calorifier can do.

On the flip side, if this is your primary hot water source and you want hot water after a whole day not driving, you’re going to have to run the engine. So for someone who does more parking than driving, it may not be a great solution.


Back boiler

COST: £

PROS:
+ Free to use
+ Uses waste heat
+ Takes up little space

 CONS:
– Fire must be lit to heat up
– Set up could be tricky
– No temperature control

A wood burner is an often overlooked potential source of hot water. While you could simply boil up a kettle of water on its top as you would on a gas stove, there is another more ingenious way of using wood to heat your water.

This clever device is called a back boiler, a metal box which sits behind your wood burner filled with water which is then heated by the fire. It’s a system that was used hundreds of years ago before domestic showers were a thing, but its simple ingenuity is one that can be brought into the 21st century.

An alternative method is to wrap a coil made from material such as copper around the flue of the wood burning stove and feed it into a metal urn nearby (see this guide)

The downside to this method is you will have to light a fire whenever you want a hot shower, which may not be practical in the middle of summer, and wood may not always be easy to come by. However it does save on resources such as gas and electricity, making it a great addition to an off-grid camper.



H E A T I N G, C O O L I N G A N D H O T W A T E R

Cooling



Okay, we’ve talked about camper van heating, we’ve talked through hot water options, but what about staying cool in a van in the summer?




Things can get pretty hot inside a van, learning how to keep cool is an essential part of the lifestyle.

This is a little talked about aspect of van life in the UK, as we don’t really get the hot weather here like they do in the States, where driving through Death Valley without an AC is literally a death sentence. But van life in hot weather can not just be uncomfortable, it can be serious, or deadly too.

In 2021 we were travelling through Tuscany in peak summer; the outside temperature was 39ºC, and the inside of our van got to 52ºC- at least, that’s what the thermostat read before it melted, and the contents of our snake plant boiled out (the plant is fine now, in case you were wondering).

This was just before Ben suffered a sudden onset of heatstroke and, trapped in the stifling heat with no water sources around for miles, almost ended up being a medical emergency. I managed to cool his core temperature down to a safe level, but it was a stark reminder of how difficult it can be to keep a van cool in summer.

Whether you plan to spend a lot of time in southern climates, or maybe just dip the occasional toe in, staying cool and comfortable is really important, so here’s a list of the best camper van air conditioning solutions.


Shade

COST: FREE
EFFECTIVENESS: +

It doesn’t really need to be said, but we’ll say it anyway. Parking in the shade is integral to keeping your vehicle cool in hot weather. It can reduce the temperature inside by up to 10ºC. Plus it’s totally free, and a great way to meet and socialise with other shade-dwellers.

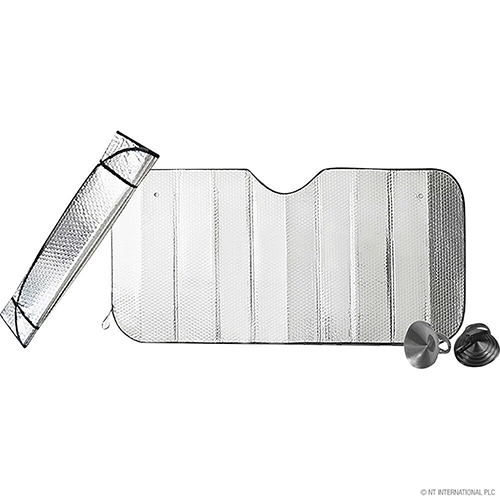

Windscreen shade

COST: £
EFFECTIVENESS: +

Next time you’re in a car park in the south of Spain take a look around you- do you see one Spanish car without a windscreen shade in place? No. That’s because while the British seem to be gluttons for heat-induced punishment, the Spaniards know that returning to a car with seats hot enough to burn your bum isn’t fun. These silver reflectors can make a surprising amount of difference, whether you’re out for the day or blocking the early morning sun before you wake, these should be in your windows every moment you’re not driving. Bonus: they keep people from peering into your van too.

Pro tip: pop a couple of these window vents in your windows at night for ventilation without compromising on safety.

Windscreen reflectors - Buy here

Window vents (dog not included) - Buy here


12V fan

COST: £
EFFECTIVENESS: +

Ah the humble fan, utterly useless as an air conditioner and better at drying you out than a Dyson Airblade, but still preferable to lying in a pool of your own sweat. Grab a 12V fan, preferably a twin one, and install it above or around your bed, enjoying the sweet smell of hot recirculated air. For extra cooling position the fan behind a plate of water, and enjoy a moderately cooler breeze on your face. Great for warm nights, but probably unable to make much of a difference in a heatwave. Still, you’ll be grateful to it for trying.




12V fan - Buy here


Tower fan

COST: £
EFFECTIVENESS: ++

Although these aren’t 12V and they take up a considerable amount of storage space, a tower fan is worth considering as they force air between the blades with greater efficiency than a small fan, meaning the air that blows out is a little bit cooler than the ambient temperature.

Although the oscillation is a nice feature, using it on the lowest setting and without it moving means the power consumption stays fairly low, and with any luck might not drain your batteries overnight. We never had issue running hours for 8-10 hours overnight.



Tower fan - Buy here



Mini air conditioner

COST: £
EFFECTIVENESS: +

Yes, you can get a mini portable air conditioner for your camper van- great news, right? Well, not exactly.
Most of these devices operate by freezing a small tray of ice that is then inserted into the unit in order to cool the air that it blows. If you have a freezer compartment in your camper van fridge then great, but if not then you’re fresh out of luck. The main downside to these units is that on a really hot day the ice will probably melt in about half an hour, so without an unlimited supply of ice trays they only really have a limited benefit, but we’ve included it as an option here just in case.



Portable air cooler - Buy here



Roof vent fan

COST: ££ - £££
EFFECTIVENESS: ++

A roof vent fan is probably a must if you plan to be travelling through the summer months, and can make a huge difference not just to the temperature but also the air quality inside your van.

A roof vent fan will provide you with a source of fresh clean air, and help to remove any smells, contaminants and most importantly damp and moisture, which can create all sorts of problems from mould to rust. It’s also handy for removing heat, steam and smells when cooking, and for providing stealth van ventilation in places where having the windows or doors open might draw too much attention.

Roof vent fans work by extracting the heat which naturally rises to the top of a van, drawing cool air in from below. Most vans will generally not be airtight, and as such will have gaps below the doors etc, however, a louvered vent can also be installed into the wall of your van to assist with the flow of cool air.

Maxxair are the favourite brand among van-dwellers, offering more features and gadgets than you could possibly ever imagine in a roof vent fan- a remote control, automatic lid closing after rain detection, no less than ten different speeds. They’re pricey, yes, and maybe a little excessive, but they will damn well keep you cool at night, and that’s a price worth paying. If you’re unsure which model to go for, the Maxxair MaxxFan Deluxe offers a good balance of features and price.

Dometic offer a wide range of roof vent fans to choose from, offering similar features to the Maxxair but with added extras such as a dehumidifier and LED lighting. The Dometic Freshjet is their top-of-the-range roof vent fan, with a built-in inverter compressor for instant cold air and remote control operation, while the Dometic Fresh Light has the added feature of a skylight. Shame about the unfortunate naming.

Maxxair MaxxFan Deluxe
Buy here

Dometic 2200 Freshjet
Buy here

Dometic 2200 Fresh Light
Buy here

Fiamma manual roof vent
Buy here


AC unit

COST: ££
EFFECTIVENESS: +++

Gone are the days where fed-up campers were forced to cut a hole in the side of their vans to insert a domestic AC unit that protrudes awkwardly out of the side like a big metal bunion. You can in fact get miniature air conditioner units for your camper van that deliver instant blissfully cold air, although be aware that these tend to draw a lot of power, so you’ll need a good solar set-up to run one off-grid. These cost around the same as a camper van heater, so it’s up to you to decide whether you spend enough time in hot climates to warrant buying one of these, but they will make summer travel a whole lot more pleasant for everyone, and are probably essential if you’re travelling with pets.

The Dometic Freshwell mounts underneath your camper van’s seating area to provide cool air via up to three outlets around the space, however it is designed be used when hooked up to mains power, as the enormous 3000W power draw could easily drain a small battery set up.

While the Truma Saphir is around the same price as the Dometic Freshwell, it comes with a lower power consumption, lighter body and an added pollen filter for allergy sufferers, whereas the Truma Aventa is a roof-mounted fan with air conditioning and heating abilities, and is around a third of the price of Dometic’s best roof vent fan. They use 2400W and 1700W respectively, and both can be controlled remotely.



H E A T I N G , C O O L I N G AND H O T W A T E R

Safety



Here’s an overview of the most important safety aspects of heating, cooling and hot water systems in vehicles.




Installing gas and wood-burning appliances such as heaters, boilers and stoves should only be undertaken by a qualified professional.

If you attempt it yourself you do this at your own risk, and be sure to install a carbon monoxide alarm in your vehicle. Carbon monoxide is a tasteless, odourless gas which can cause nasty side effects such as headaches, nausea and death.

If you’re installing gas appliances with a view to hiring out your camper van, you will need to have these installed professionally and receive a Landlord Gas Safety Record for LAVs (Leisure Accommodation Vehicles). Bear in mind that while all LAV specialists are Gas Safe registered, not all Gas Safe registered engineers are qualified to work on leisure vehicles, so you will need to find a specialist who is able to undertake this type of work and grant you a certificate.

This can be a stringent process, but here are some key takeaways:

  • Gas bottles must be stored in a ventilated area, either outdoors or in a gas safe cabinet that is accessed externally. They must always be stored upright.

  • Adequate ventilation must be installed; gas drop-out vents should be installed below gas bottles and LPG appliances, and at least one roof vent should be present

  • LPG boilers must have an external flue with an overall length of 600mm and must not vent into the vehicle; the flue must be insulated where it enters the roof

  • LPG boilers should be mounted on cementitious backer board, and not on any flammable materials such as plywood

  • The correct gas regulator must be installed (propane and butane operate at different pressures)



You can find more information in this article here, but the best person to discuss gas safety regulations with is your gas engineer.

Wood-burning stoves should have plenty of ventilation and adequate space between the stove and any combustibles, and should be installed with a heat shield such as non-combustible fireboard. The stove should be installed with 250mm of space to the rear, and 300mm of space either side, or 400mm from combustibles; this can be reduced to 100mm with a stove shield. The flue should be double insulated and installed with an appropriate flashing kit where it exits the roof. As well as a carbon monoxide alarm, you should keep a smoke alarm and fire extinguisher handy.

If you’re planning to hire out a vehicle then you must have the stove installed by a professional who is able to sign the work off. Some insurance companies may not be willing to cover you with a wood-burning stove on board, so bear this in mind and do your research before making any commitments.





H E A T I N G , C O O L I N G AND H O T W A T E R

Ventilation

Whatever method of heating your van you’ve decided on it’s going to involve burning some kind of fuel, whether that be diesel, gas or wood. In doing so, carbon monoxide is created, and as mentioned above it can pose a danger to health without the correct ventilation.

Sanding down the flaking paint on our old Bedford CF camper van.

We know, cutting holes in your van seems counterintuitive when what you’re trying to achieve is a warmer space, but it’s a necessary evil. How much ventilation you build in is up to you, but here are some guidelines to give you an idea.

  • When burning propane or butane this is going to create condensation, and in addition to this a gas drop out vent must be fitted wherever gas bottles are stored, as gas is heavier than air. While opening a door or window would probably suffice to expel most of the moisture and fumes in the air, to be on the safe side we’d recommend installing a roof vent fan or mushroom vent.

  • While diesel or petrol heaters generally exhaust their fumes outdoors, if you can smell burning fuel in the air be sure to ventilate by opening a door, and if the fuming persists be sure to inspect your heater and exhaust pipe for holes.

  • When installing a wood burning stove it’s also advisable to install a floor vent as close as possible behind it to allow any harmful fumes to drop out, as well as cracking a window to ensure a bit of air flow. It’s easy to feel sleepy by the fire due to the heat, but this could also mask the symptoms of carbon monoxide poisoning which include headaches, dizziness and sleepiness. A carbon monoxide alarm will alert you to any issues and minimise any risk to your safety.

H E A T I N G , C O O L I N G AND H O T W A T E R

Installation guides

Roller painting is an easy way to apply paint to your vehicle, unless your name is Ben.

At this point you’re also going to want to grab your rollers; we’ve found the best roller to paint a van is a simple gloss foam mini roller kit. The fine pores of the sponge create very small bubbles which smooth out shortly after applying, and the small 4” roller width allows you to tackle most areas on your van.

Our only recommendation for these rollers is don’t cheap out and buy them from Poundland; they don’t have to cost a fortune, but equally you don’t want them tearing apart and falling on the ground while you’re painting, which is really, really annoying. Especially when you get down to your last roller and watch it fall onto the ground and get covered in dirt, rendering it unusable. Don’t use emulsion rollers either, unless you want your finish to look like it was painted by a wet dog.

You’ll want to grab some brushes too, for the details like ending around window frames and door locks. Get some quality brushes; don’t argue with me on this, just spend a few extra quid and avoid horrible coarse brush strokes because you wanted to save an extra £2.

ProDec 4” mini roller kit - Buy here

Harris brushes - Buy here

COMMENTS
